Pig Feed Silos for Automatic Pig Feeding Systems
Compare galvanized steel and fiberglass feed silo options for pig farms, with project-based capacity selection, outlet configuration and matching to automatic feed delivery lines.
Material options
Galvanized and Fiberglass Silo Options
The silo material and configuration should be selected according to storage requirements, site conditions, feed delivery layout and the approved project scope.

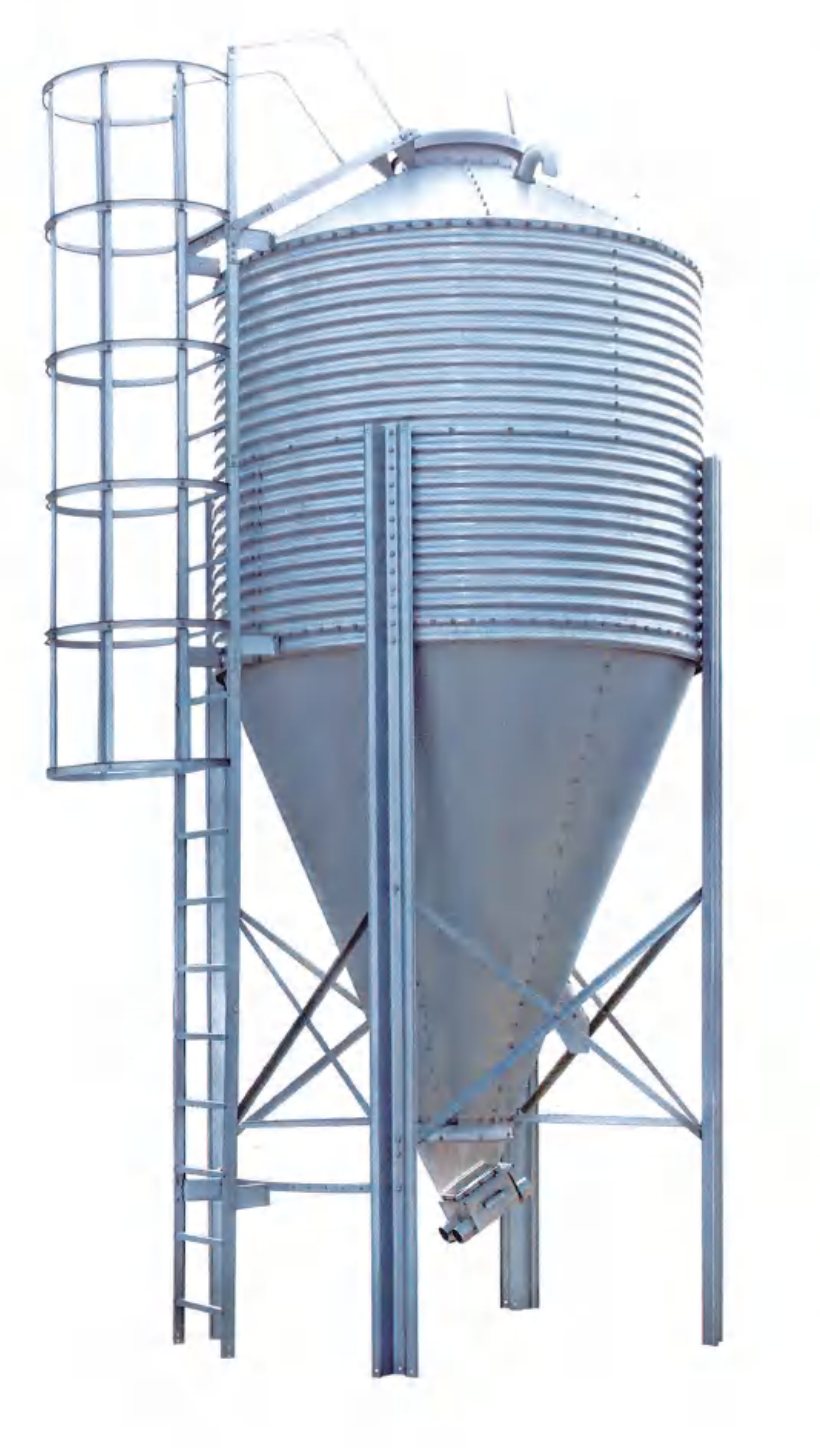

Galvanized Steel Feed Silos
Galvanized steel silo configurations are selected according to the approved model and project requirements. The body, support structure, outlet accessories and connection layout are confirmed before quotation and production.
Fiberglass Feed Silo Options
Fiberglass feed silo configurations may be considered for projects with different material, environmental and installation requirements. Available capacities, support structures, outlet arrangements and feed-line connections are model-dependent and are confirmed during technical review.
Submit the project layout and required storage scope so the suitable material direction can be discussed without assuming that fiberglass and galvanized configurations share the same structure.
Model selection
Silo Types and Capacity Range
Selected galvanized feed silo configurations are available from approximately 1.9 to 51.7 m³. Final usable feed capacity depends on the selected model and feed bulk density and is confirmed during technical review.
The capacity class should be reviewed together with daily feed consumption, delivery interval, available installation area, pig-house grouping and the feed-line route. A larger nominal volume is not automatically the correct choice for every farm.
Selection inputs
- Required storage volume and feed delivery interval
- Feed type and estimated bulk density, if known
- Number and layout of pig houses
- Installation location and foundation conditions
- Required outlet and feed-line type
Construction details
Main Structural Components

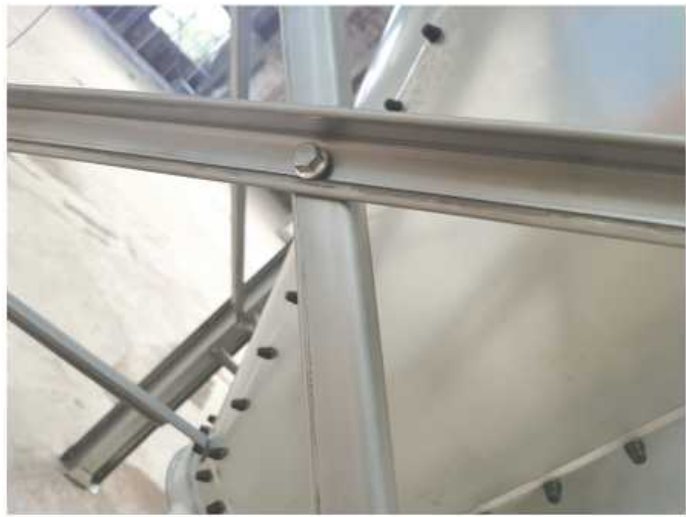

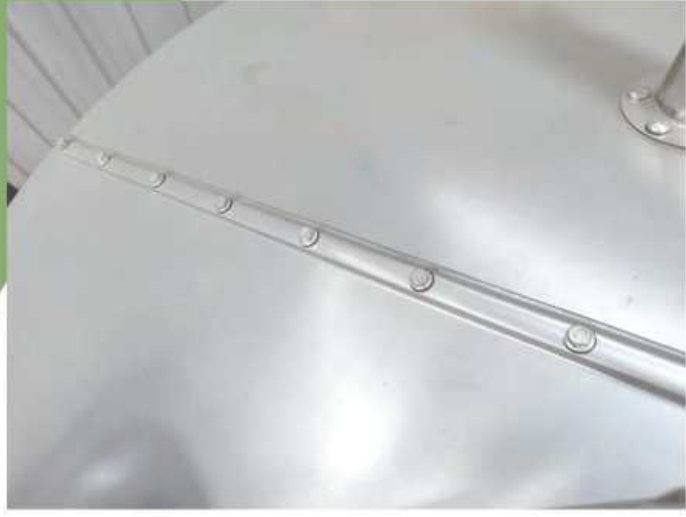

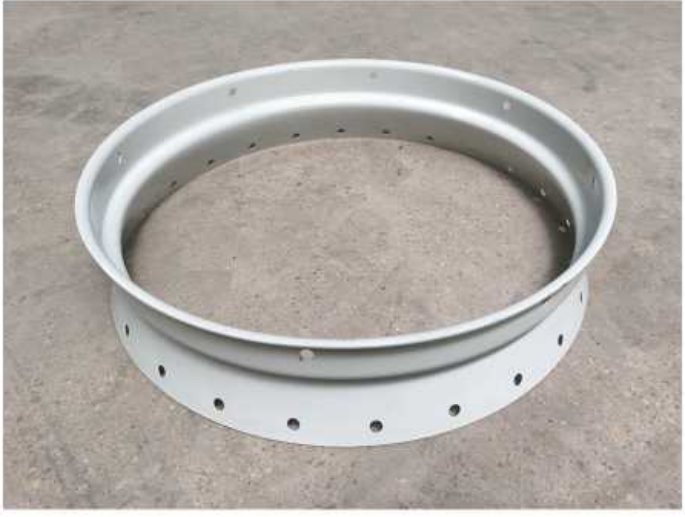

These catalog-confirmed detail views show typical structural features within the reviewed galvanized silo family. Final component scope and dimensions remain model-dependent.
Feed transport interface
Discharge and Feed-Line Connection

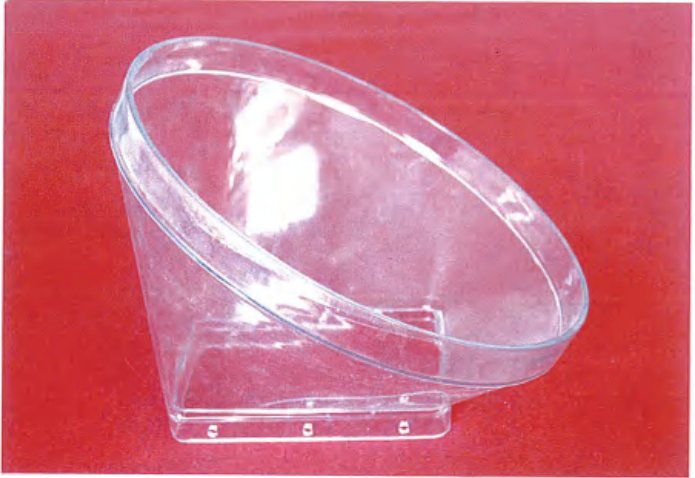

The silo outlet, hopper and external pipe route should be confirmed as one delivery arrangement. For auger projects, the connection can be matched with the planned pig feed delivery line after the silo position and house entry point are reviewed.
Outlet dimensions and hopper arrangements are not universal. They should be confirmed for the selected model and feed-line layout before quotation.
Optional functions
Weighing and Anti-Blocking Options

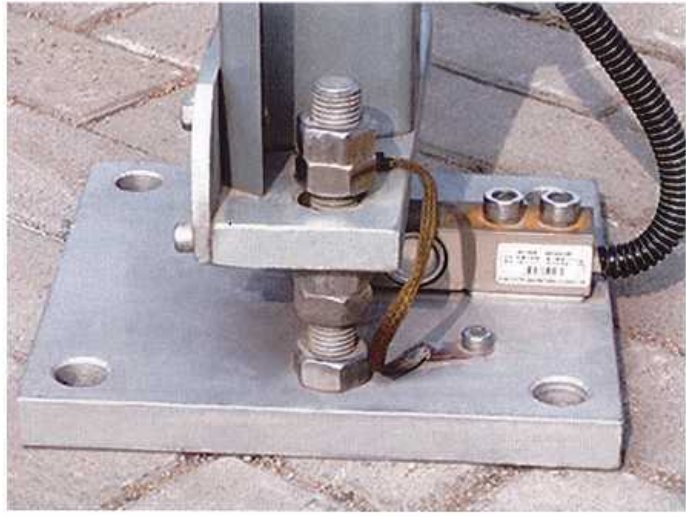

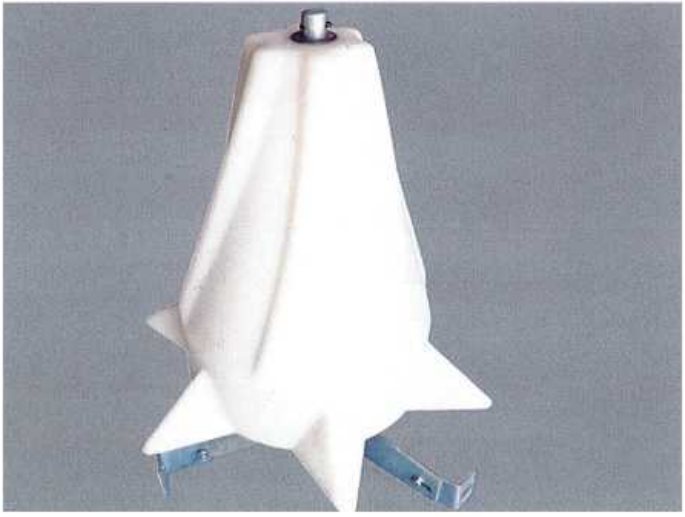

Optional assemblies may support feed inventory management or more stable discharge for compatible silo configurations. Their installation, controls and supply scope must be reviewed for the selected model.
Project evidence
Project Installation Evidence

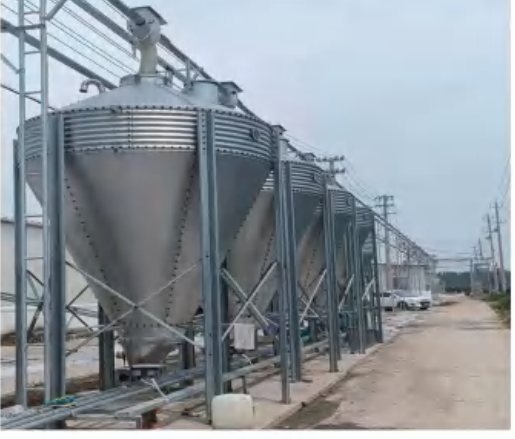

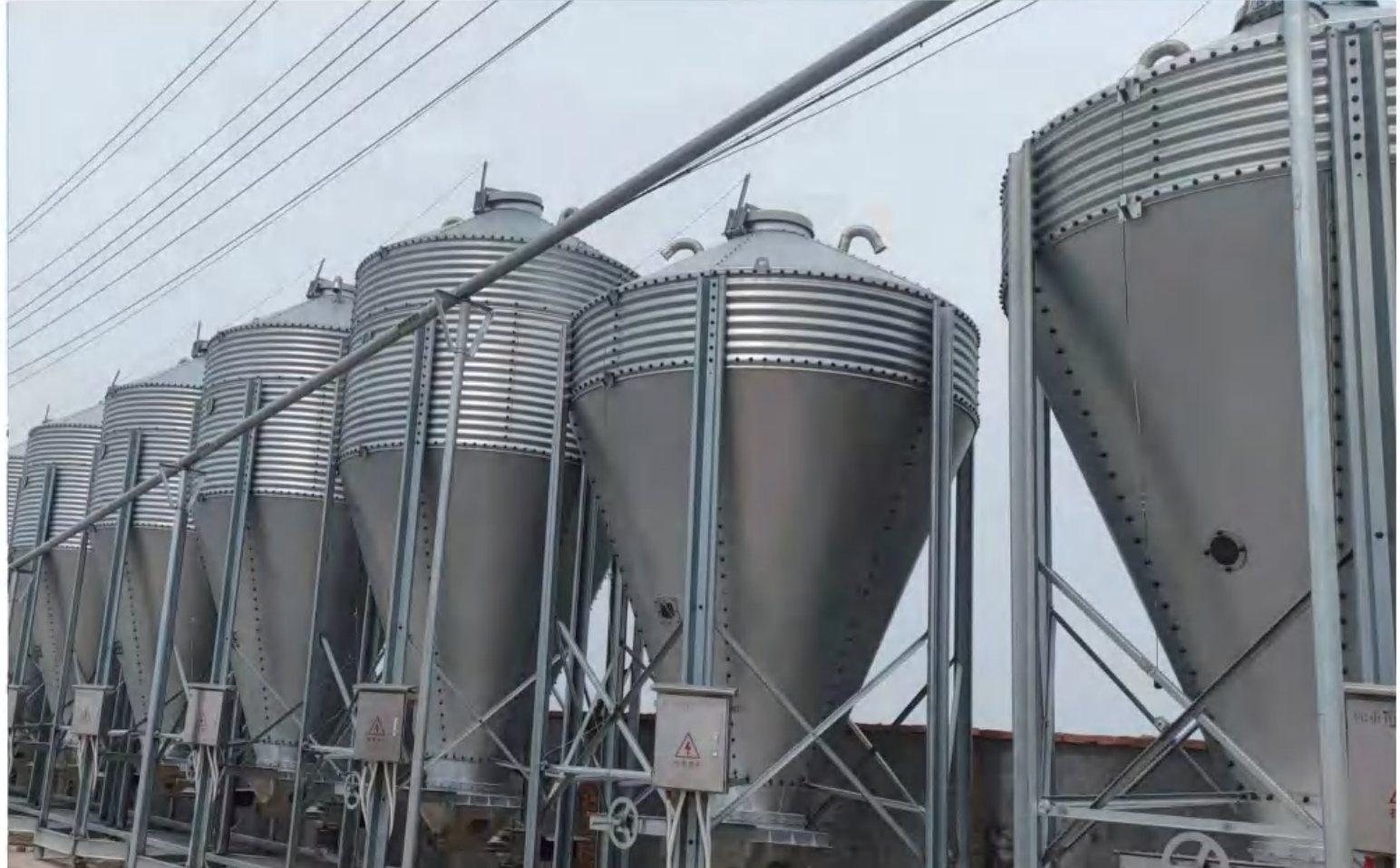

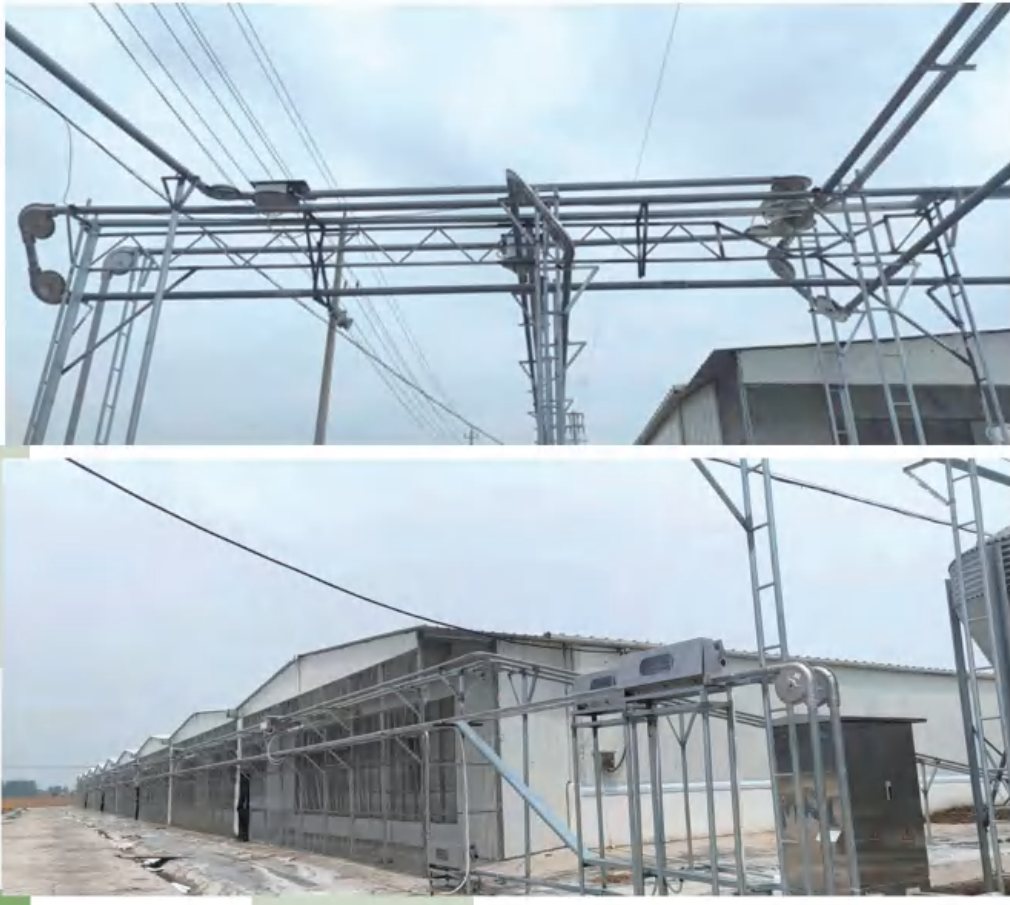

Multiple silos can be arranged outside pig houses and connected to external feed delivery pipes according to the farm layout. The final number of silos, spacing, support arrangement and pipe route are project-specific.
KAMOF can discuss the silo as part of a broader pig feeding system, including storage, delivery and downstream feeding equipment.
Project matching
How to Select a Feed Silo
Start with the storage requirement and site layout, then confirm how feed will move from the silo to the pig houses and feeding points.
- Confirm required storage volume and refill interval.
- Provide feed type and bulk density when available.
- Mark the proposed silo position on a site drawing.
- Confirm auger delivery route and outlet requirements.
- Review foundation, access and local installation conditions.
- Confirm weighing or anti-blocking options if required.
- Define packing, installation-support and destination scope.
- Approve the selected model drawing before production.
Representative configurations
Technical Specification Table
The following eight verified galvanized configurations provide low, medium and high nominal-volume references. They are not a complete catalog and do not represent fixed stock availability.
| Capacity class / model | Nominal volume | Diameter | Overall height | Legs | Material | Outlet configuration |
|---|---|---|---|---|---|---|
| 1.9 m³ classΦ1530-0.5 | 1.9 m³ | 1530 mm | 3537 mm | 4 | Galvanized steel | Confirmed for selected feed-line layout |
| 4.6 m³ classΦ1530-2 | 4.6 m³ | 1530 mm | 4791 mm | 4 | Galvanized steel | Confirmed for selected feed-line layout |
| 9.9 m³ classΦ2140-2 | 9.9 m³ | 2140 mm | 5670 mm | 4 | Galvanized steel | Confirmed for selected feed-line layout |
| 13.1 m³ classΦ2140-3 | 13.1 m³ | 2140 mm | 6555 mm | 4 | Galvanized steel | Confirmed for selected feed-line layout |
| 18.3 m³ classΦ2750-2 | 18.3 m³ | 2750 mm | 6550 mm | 6 | Galvanized steel | Confirmed for selected feed-line layout |
| 28.7 m³ classΦ2750-4 | 28.7 m³ | 2750 mm | 8320 mm | 6 | Galvanized steel | Confirmed for selected feed-line layout |
| 42.4 m³ classΦ3669-3 | 42.4 m³ | 3669 mm | 7560 mm | 8 | Galvanized steel | Confirmed for selected feed-line layout |
| 51.7 m³ classΦ3669-4 | 51.7 m³ | 3669 mm | 8445 mm | 8 | Galvanized steel | Confirmed for selected feed-line layout |
1.9 m³ class Φ1530-0.5
- Nominal volume
- 1.9 m³
- Diameter
- 1530 mm
- Overall height
- 3537 mm
- Leg quantity
- 4
- Material
- Galvanized steel
- Outlet
- Project-confirmed
4.6 m³ class Φ1530-2
- Nominal volume
- 4.6 m³
- Diameter
- 1530 mm
- Overall height
- 4791 mm
- Leg quantity
- 4
- Material
- Galvanized steel
- Outlet
- Project-confirmed
9.9 m³ class Φ2140-2
- Nominal volume
- 9.9 m³
- Diameter
- 2140 mm
- Overall height
- 5670 mm
- Leg quantity
- 4
- Material
- Galvanized steel
- Outlet
- Project-confirmed
13.1 m³ class Φ2140-3
- Nominal volume
- 13.1 m³
- Diameter
- 2140 mm
- Overall height
- 6555 mm
- Leg quantity
- 4
- Material
- Galvanized steel
- Outlet
- Project-confirmed
18.3 m³ class Φ2750-2
- Nominal volume
- 18.3 m³
- Diameter
- 2750 mm
- Overall height
- 6550 mm
- Leg quantity
- 6
- Material
- Galvanized steel
- Outlet
- Project-confirmed
28.7 m³ class Φ2750-4
- Nominal volume
- 28.7 m³
- Diameter
- 2750 mm
- Overall height
- 8320 mm
- Leg quantity
- 6
- Material
- Galvanized steel
- Outlet
- Project-confirmed
42.4 m³ class Φ3669-3
- Nominal volume
- 42.4 m³
- Diameter
- 3669 mm
- Overall height
- 7560 mm
- Leg quantity
- 8
- Material
- Galvanized steel
- Outlet
- Project-confirmed
51.7 m³ class Φ3669-4
- Nominal volume
- 51.7 m³
- Diameter
- 3669 mm
- Overall height
- 8445 mm
- Leg quantity
- 8
- Material
- Galvanized steel
- Outlet
- Project-confirmed
Additional model configurations are available according to project requirements. Final usable feed capacity depends on feed type and bulk density. Final dimensions, outlet configuration and foundation information are confirmed for the selected model before quotation.
Quotation preparation
Information Required for Quotation
Provide the following information so the storage, outlet and delivery-line scope can be reviewed together:
- Required feed storage volume
- Feed type
- Estimated feed bulk density, if known
- Number of pig houses
- Automatic feed-line type
- Required outlet configuration
- Installation location
- Available site drawing
- Required quantity
- Destination country or port
- Project schedule
System matching
Related Feeding Equipment
A feed silo is normally selected together with the delivery and feeding equipment that follows it. Review the related system pages based on your project scope.
Buyer questions
Pig Feed Silo FAQ
What is a pig feed silo used for?
A pig feed silo stores bulk feed near pig houses and supports planned delivery to an automatic feeding system. The final storage and delivery arrangement depends on farm scale, feed type and pig-house layout.
What is the available capacity range?
Selected galvanized feed silo configurations are available from approximately 1.9 to 51.7 m³. The suitable configuration and usable feed capacity are confirmed after feed bulk density and project requirements are reviewed.
Can a feed silo connect to an automatic pig feeding system?
Yes. Outlet and hopper options can be matched with an auger feed delivery line after the silo position, pipe route, outlet arrangement and pig-house layout are confirmed.
Are weighing and anti-blocking options available?
Weighing assemblies and anti-blocking components can be discussed for compatible configurations. Their inclusion, installation and control requirements are confirmed for the selected model.
What information is required for a quotation?
Please provide the required storage volume, feed type, estimated bulk density if known, number of pig houses, feed-line type, outlet requirement, installation location, quantity, destination and project schedule.
